Main schema HUD_HMIS.xsd
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Properties
attribute form default: qualified
element form default: qualified
version: 3.0

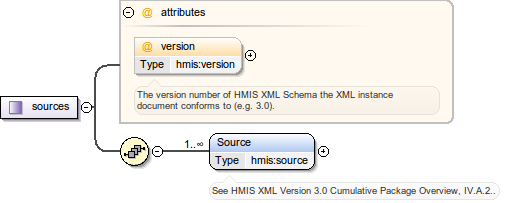

Element Sources
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.1.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id478 HUD_HMIS.xsd0.tmp#id3 HUD_HMIS.xsd0.tmp#id2
Type sources
Properties
content: complex
Model Source+
Children Source
Instance
<Sources version="">
  <Source>{1,unbounded}</Source>
</Sources>
Attributes
QName Type Fixed Default Use Annotation
version version optional
The version number of HMIS XML Schema the XML instance document conforms to (e.g. 3.0).
Source
<xsd:element name="Sources" type="hmis:sources">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.1.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element sources / Source
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id5 HUD_HMIS.xsd0.tmp#id15 HUD_HMIS.xsd0.tmp#id17 HUD_HMIS.xsd0.tmp#id19 HUD_HMIS.xsd0.tmp#id21 HUD_HMIS.xsd0.tmp#id23 HUD_HMIS.xsd0.tmp#id25 HUD_HMIS.xsd0.tmp#id26 HUD_HMIS.xsd0.tmp#id28 HUD_HMIS.xsd0.tmp#id29 HUD_HMIS.xsd0.tmp#id4
Type source
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model SourceID , SoftwareVendor , SoftwareVersion , SourceContactEmail{0,1} , SourceContactExtension{0,1} , SourceContactFirst{0,1} , SourceContactLast{0,1} , SourceContactPhone{0,1} , SourceName , Export*
Children Export, SoftwareVendor, SoftwareVersion, SourceContactEmail, SourceContactExtension, SourceContactFirst, SourceContactLast, SourceContactPhone, SourceID, SourceName
Instance
<Source>
  <SourceID delete="1" deleteEffective="" deleteOccurredDate="">{1,1}</SourceID>
  <SoftwareVendor>{1,1}</SoftwareVendor>
  <SoftwareVersion>{1,1}</SoftwareVersion>
  <SourceContactEmail>{0,1}</SourceContactEmail>
  <SourceContactExtension>{0,1}</SourceContactExtension>
  <SourceContactFirst>{0,1}</SourceContactFirst>
  <SourceContactLast>{0,1}</SourceContactLast>
  <SourceContactPhone>{0,1}</SourceContactPhone>
  <SourceName>{1,1}</SourceName>
  <Export>{0,unbounded}</Export>
</Source>
Source
<xsd:element name="Source" type="hmis:source" minOccurs="1" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element source / SourceID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6

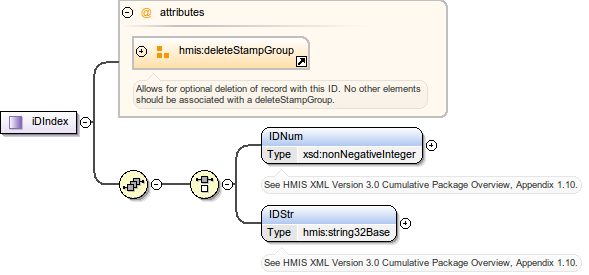

Type iDIndex
Properties
content: complex
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<SourceID delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</SourceID>
Attributes
QName Type Fixed Default Use Annotation

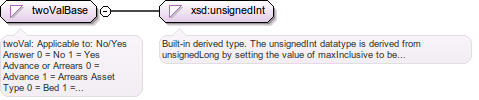

delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="SourceID" type="hmis:iDIndex">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element iDIndex / IDNum
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Appendix 1.10.
Diagram
Diagram
Type xsd:nonNegativeInteger
Properties
content: simple
Source
<xsd:element name="IDNum" type="xsd:nonNegativeInteger">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Appendix 1.10.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element iDIndex / IDStr
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Appendix 1.10.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id9
Type string32Base
Properties
content: simple
Facets
maxLength 32
Source
<xsd:element name="IDStr" type="hmis:string32Base">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Appendix 1.10.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element source / SoftwareVendor
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id16
Type string50Base
Properties
content: simple
Facets
maxLength 50
Source
<xsd:element name="SoftwareVendor" type="hmis:string50Base">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element source / SoftwareVersion
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id18
Type version
Properties
content: simple
Facets
totalDigits 5
fractionDigits 3
minInclusive 0.001
Source
<xsd:element name="SoftwareVersion" type="hmis:version">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element source / SourceContactEmail
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id20
Type emailBase
Properties
content: simple
minOccurs: 0
Facets
pattern (([A-Za-z0-9]+_+)|([A-Za-z0-9]+\-+)|([A-Za-z0-9]+\.+)|([A-Za-z0-9]+\++))*[A-Za-z0-9]+@((\w+\-+)|(\w+\.))*\w{1,63}\.[a-zA-Z]{2,6}
Source
<xsd:element name="SourceContactEmail" type="hmis:emailBase" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element source / SourceContactExtension
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id22
Type extension
Properties
content: simple
minOccurs: 0
Facets
pattern [0-9]{1,5}
Source
<xsd:element name="SourceContactExtension" type="hmis:extension" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element source / SourceContactFirst
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id24
Type string20Base
Properties
content: simple
minOccurs: 0
Facets
maxLength 20
Source
<xsd:element name="SourceContactFirst" type="hmis:string20Base" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element source / SourceContactLast
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id24
Type string20Base
Properties
content: simple
minOccurs: 0
Facets
maxLength 20
Source
<xsd:element name="SourceContactLast" type="hmis:string20Base" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element source / SourceContactPhone
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id27
Type phoneNumberBase
Properties
content: simple
minOccurs: 0
Facets
pattern [2-9][0-9]{2}[2-9][0-9]{2}[0-9]{4}
Source
<xsd:element name="SourceContactPhone" type="hmis:phoneNumberBase" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element source / SourceName
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id16
Type string50Base
Properties
content: simple
Facets
maxLength 50
Source
<xsd:element name="SourceName" type="hmis:string50Base">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.2..</xsd:documentation>
  </xsd:annotation>
</xsd:element>

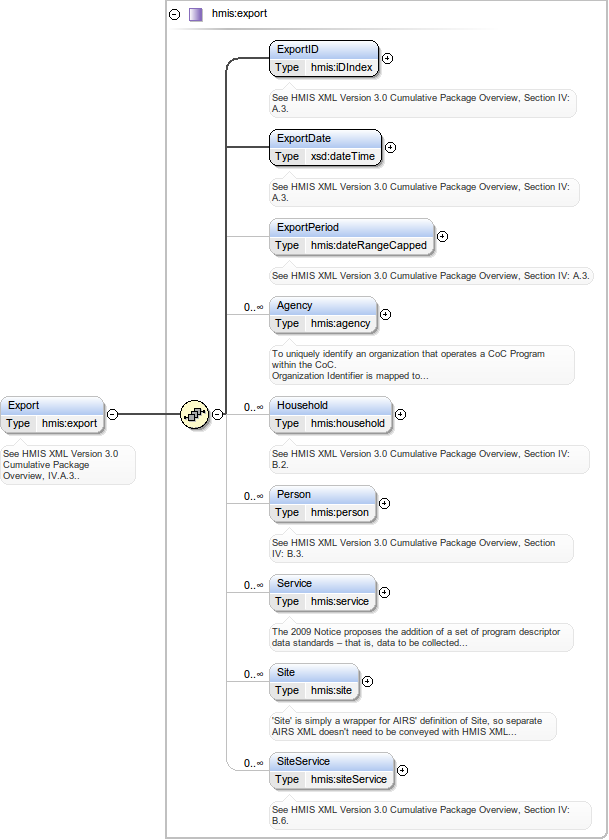

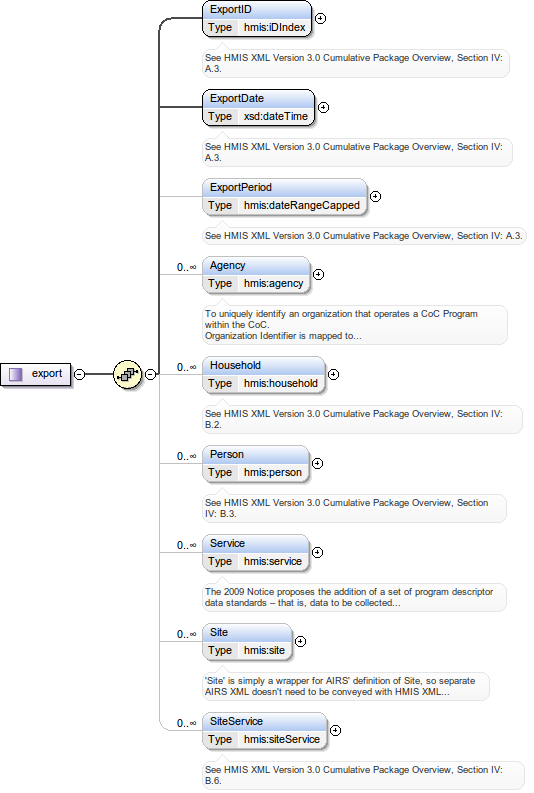

Element source / Export
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.3..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id31 HUD_HMIS.xsd0.tmp#id32 HUD_HMIS.xsd0.tmp#id33 HUD_HMIS.xsd0.tmp#id37 HUD_HMIS.xsd0.tmp#id39 HUD_HMIS.xsd0.tmp#id56 HUD_HMIS.xsd0.tmp#id390 HUD_HMIS.xsd0.tmp#id430 HUD_HMIS.xsd0.tmp#id433 HUD_HMIS.xsd0.tmp#id30
Type export
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model ExportID , ExportDate , ExportPeriod{0,1} , Agency* , Household* , Person* , Service* , Site* , SiteService*
Children Agency, ExportDate, ExportID, ExportPeriod, Household, Person, Service, Site, SiteService
Instance
<Export>
  <ExportID delete="1" deleteEffective="" deleteOccurredDate="">{1,1}</ExportID>
  <ExportDate>{1,1}</ExportDate>
  <ExportPeriod>{0,1}</ExportPeriod>
  <Agency>{0,unbounded}</Agency>
  <Household>{0,unbounded}</Household>
  <Person>{0,unbounded}</Person>
  <Service>{0,unbounded}</Service>
  <Site>{0,unbounded}</Site>
  <SiteService>{0,unbounded}</SiteService>
</Export>
Source
<xsd:element name="Export" type="hmis:export" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.A.3..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element export / ExportID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: A.3.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6
Type iDIndex
Properties
content: complex
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<ExportID delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</ExportID>
Attributes
QName Type Fixed Default Use Annotation
delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="ExportID" type="hmis:iDIndex">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: A.3.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element export / ExportDate
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: A.3.
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source
<xsd:element name="ExportDate" type="xsd:dateTime">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: A.3.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element export / ExportPeriod
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: A.3.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id35 HUD_HMIS.xsd0.tmp#id36 HUD_HMIS.xsd0.tmp#id34
Type dateRangeCapped
Properties
content: complex
minOccurs: 0
Model StartDate , EndDate
Children EndDate, StartDate
Instance
<ExportPeriod>
  <StartDate>{1,1}</StartDate>
  <EndDate>{1,1}</EndDate>
</ExportPeriod>
Source
<xsd:element name="ExportPeriod" type="hmis:dateRangeCapped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: A.3.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element dateRangeCapped / StartDate
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source
<xsd:element name="StartDate" type="xsd:dateTime"/>
Element dateRangeCapped / EndDate
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
Source
<xsd:element name="EndDate" type="xsd:dateTime"/>

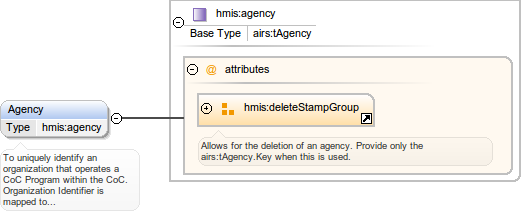

Element export / Agency
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 2.1

To uniquely identify an organization that operates a CoC Program within the CoC.
Organization Identifier is mapped to airs:tAgency.Key

2010 HUD HMIS Data and Technical Standards, Section 2.2

To identify the name of each organization that operates a CoC Program within the CoC.
Organization Name is mapped to airs:tAgency.Name
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id38
Type agency
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Source
<xsd:element name="Agency" type="hmis:agency" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 2.1" xml:lang="en">To uniquely identify an organization that operates a CoC Program within the CoC.</xsd:documentation>
    <xsd:documentation xml:lang="en">Organization Identifier is mapped to airs:tAgency.Key</xsd:documentation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 2.2" xml:lang="en">To identify the name of each organization that operates a CoC Program within the CoC.</xsd:documentation>
    <xsd:documentation xml:lang="en">Organization Name is mapped to airs:tAgency.Name</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element export / Household
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.2.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id41 HUD_HMIS.xsd0.tmp#id42 HUD_HMIS.xsd0.tmp#id49 HUD_HMIS.xsd0.tmp#id40
Type household
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model HouseholdID , HeadOfHouseholdID{0,1} , Members{0,1}
Children HeadOfHouseholdID, HouseholdID, Members
Instance
<Household>
  <HouseholdID delete="1" deleteEffective="" deleteOccurredDate="">{1,1}</HouseholdID>
  <HeadOfHouseholdID dataCollectionStage="" dateCollected="" dateEffective="" delete="1" deleteEffective="" deleteOccurredDate="">{0,1}</HeadOfHouseholdID>
  <Members>{0,1}</Members>
</Household>
Source
<xsd:element name="Household" type="hmis:household" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.2.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

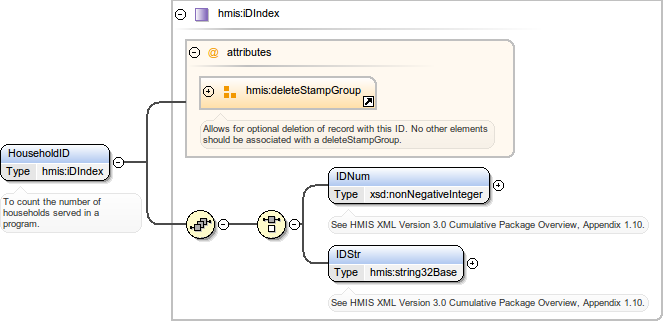

Element household / HouseholdID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.15

To count the number of households served in a program.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6
Type iDIndex
Properties
content: complex
minOccurs: 1
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<HouseholdID delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</HouseholdID>
Attributes
QName Type Fixed Default Use Annotation
delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="HouseholdID" type="hmis:iDIndex" minOccurs="1">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.15" xml:lang="en">To count the number of households served in a program.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

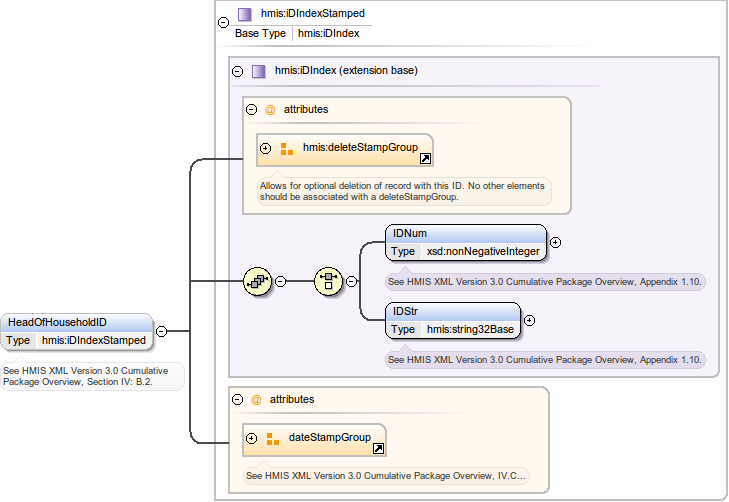

Element household / HeadOfHouseholdID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.2.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id43

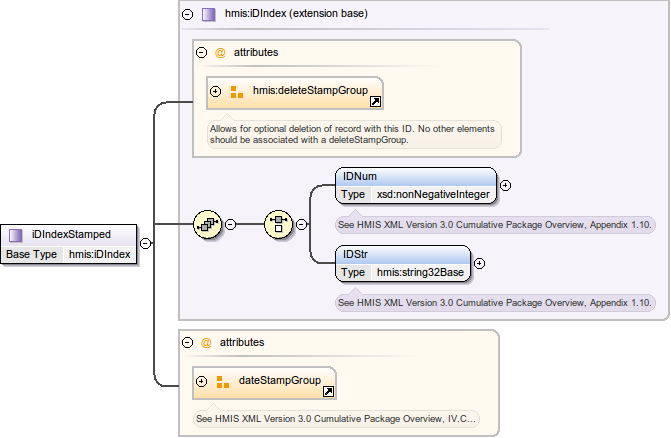

Type iDIndexStamped
Type hierarchy
Properties
content: complex
minOccurs: 0
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<HeadOfHouseholdID dataCollectionStage="" dateCollected="" dateEffective="" delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</HeadOfHouseholdID>
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="HeadOfHouseholdID" type="hmis:iDIndexStamped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.2.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

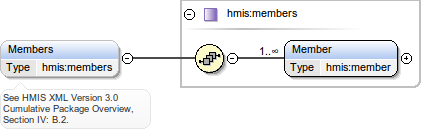

Element household / Members
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.2.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id51 HUD_HMIS.xsd0.tmp#id50
Type members
Properties
content: complex
minOccurs: 0
Model Member+
Children Member
Instance
<Members>
  <Member>{1,unbounded}</Member>
</Members>
Source
<xsd:element name="Members" type="hmis:members" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.2.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

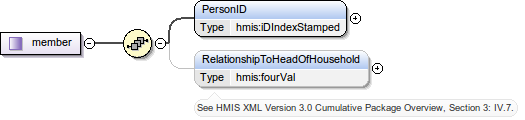

Element members / Member
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id53 HUD_HMIS.xsd0.tmp#id54 HUD_HMIS.xsd0.tmp#id52
Type member
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model PersonID , RelationshipToHeadOfHousehold{0,1}
Children PersonID, RelationshipToHeadOfHousehold
Instance
<Member>
  <PersonID dataCollectionStage="" dateCollected="" dateEffective="" delete="1" deleteEffective="" deleteOccurredDate="">{1,1}</PersonID>
  <RelationshipToHeadOfHousehold dataCollectionStage="" dateCollected="" dateEffective="">{0,1}</RelationshipToHeadOfHousehold>
</Member>
Source
<xsd:element name="Member" type="hmis:member" minOccurs="1" maxOccurs="unbounded"/>
Element member / PersonID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id43
Type iDIndexStamped
Type hierarchy
Properties
content: complex
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<PersonID dataCollectionStage="" dateCollected="" dateEffective="" delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</PersonID>
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="PersonID" type="hmis:iDIndexStamped"/>

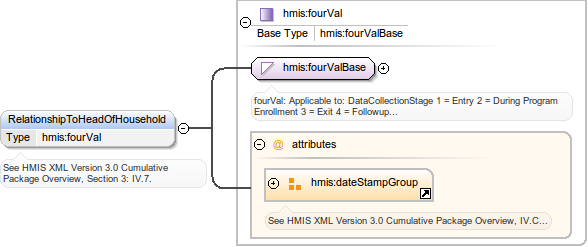

Element member / RelationshipToHeadOfHousehold
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section 3: IV.7.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id48 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id55

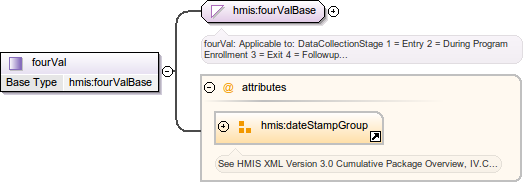

Type fourVal
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="RelationshipToHeadOfHousehold" type="hmis:fourVal" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section 3: IV.7.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

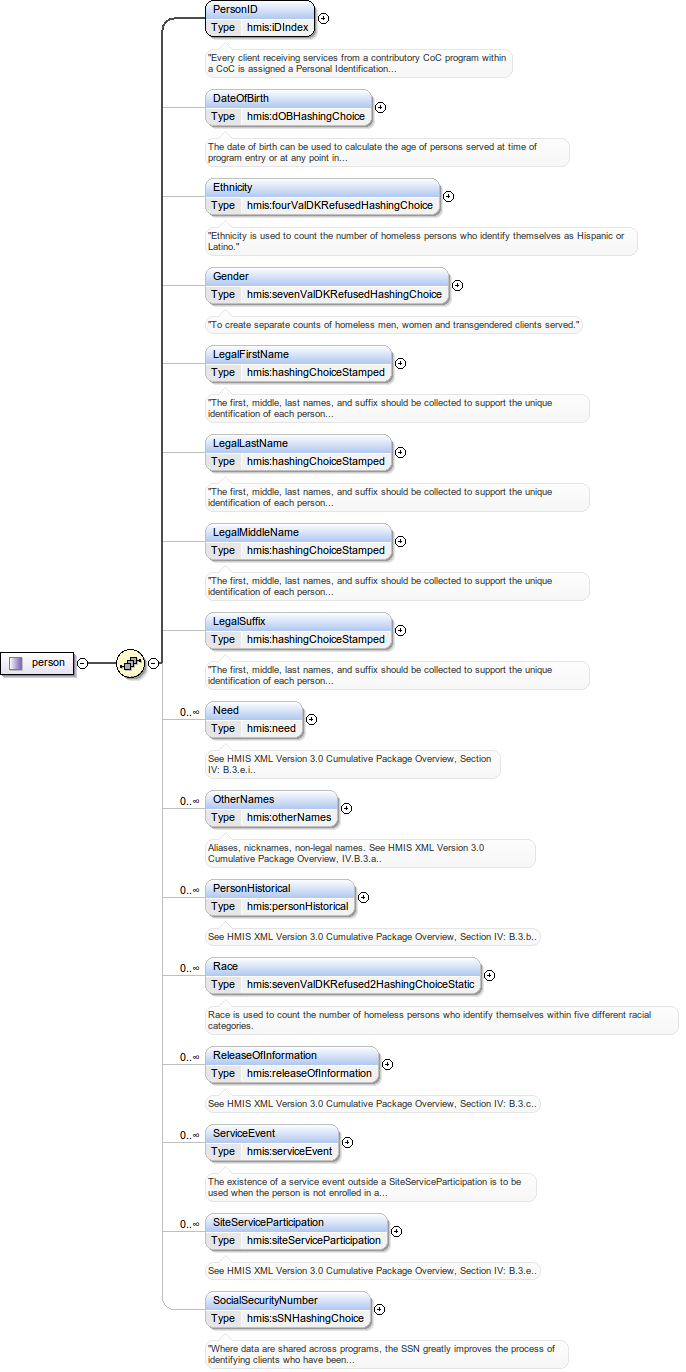

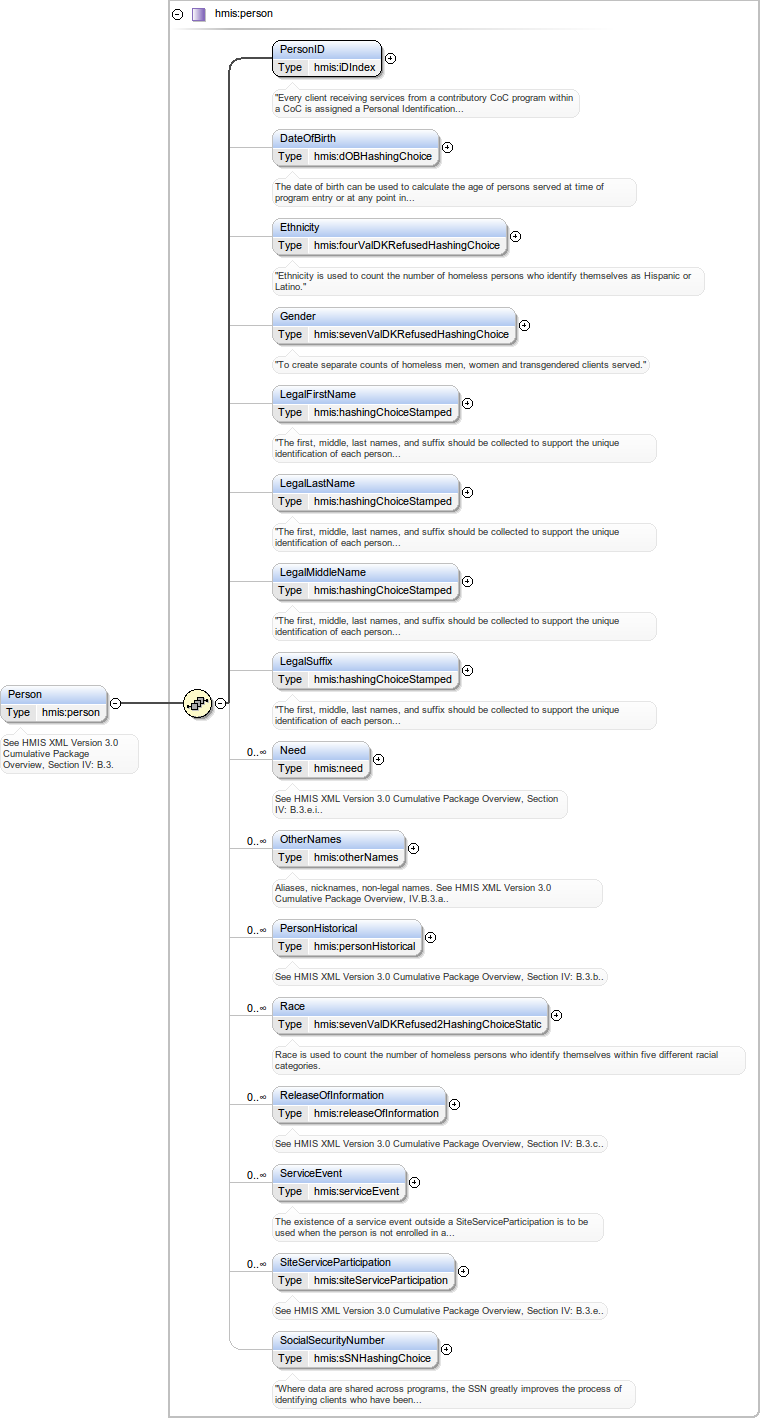

Element export / Person
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.3.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id58 HUD_HMIS.xsd0.tmp#id59 HUD_HMIS.xsd0.tmp#id70 HUD_HMIS.xsd0.tmp#id76 HUD_HMIS.xsd0.tmp#id83 HUD_HMIS.xsd0.tmp#id87 HUD_HMIS.xsd0.tmp#id88 HUD_HMIS.xsd0.tmp#id89 HUD_HMIS.xsd0.tmp#id90 HUD_HMIS.xsd0.tmp#id106 HUD_HMIS.xsd0.tmp#id112 HUD_HMIS.xsd0.tmp#id312 HUD_HMIS.xsd0.tmp#id317 HUD_HMIS.xsd0.tmp#id324 HUD_HMIS.xsd0.tmp#id367 HUD_HMIS.xsd0.tmp#id383 HUD_HMIS.xsd0.tmp#id57
Type person
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model PersonID , DateOfBirth{0,1} , Ethnicity{0,1} , Gender{0,1} , LegalFirstName{0,1} , LegalLastName{0,1} , LegalMiddleName{0,1} , LegalSuffix{0,1} , Need* , OtherNames* , PersonHistorical* , Race* , ReleaseOfInformation* , ServiceEvent* , SiteServiceParticipation* , SocialSecurityNumber{0,1}
Children DateOfBirth, Ethnicity, Gender, LegalFirstName, LegalLastName, LegalMiddleName, LegalSuffix, Need, OtherNames, PersonHistorical, PersonID, Race, ReleaseOfInformation, ServiceEvent, SiteServiceParticipation, SocialSecurityNumber
Instance
<Person>
  <PersonID delete="1" deleteEffective="" deleteOccurredDate="">{1,1}</PersonID>
  <DateOfBirth>{0,1}</DateOfBirth>
  <Ethnicity>{0,1}</Ethnicity>
  <Gender>{0,1}</Gender>
  <LegalFirstName>{0,1}</LegalFirstName>
  <LegalLastName>{0,1}</LegalLastName>
  <LegalMiddleName>{0,1}</LegalMiddleName>
  <LegalSuffix>{0,1}</LegalSuffix>
  <Need>{0,unbounded}</Need>
  <OtherNames>{0,unbounded}</OtherNames>
  <PersonHistorical>{0,unbounded}</PersonHistorical>
  <Race>{0,unbounded}</Race>
  <ReleaseOfInformation>{0,unbounded}</ReleaseOfInformation>
  <ServiceEvent>{0,unbounded}</ServiceEvent>

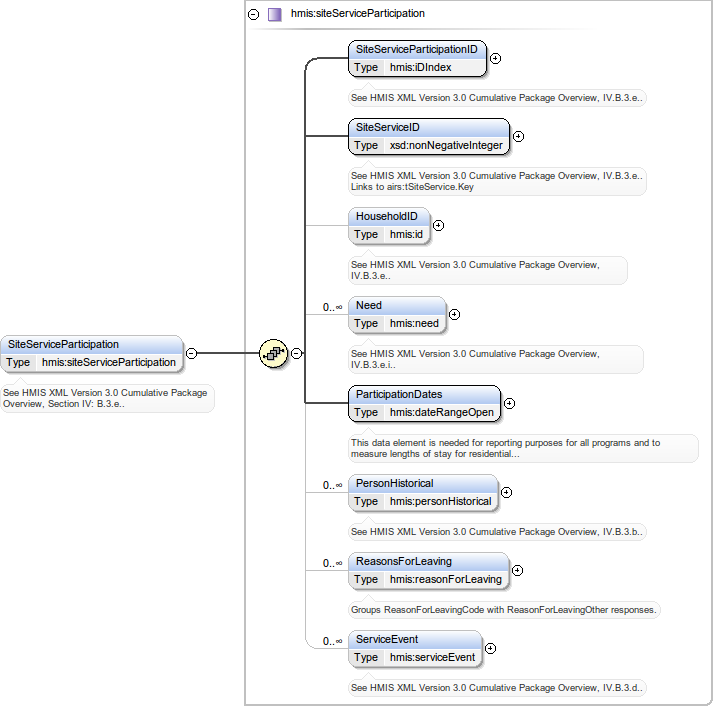

  <SiteServiceParticipation>{0,unbounded}</SiteServiceParticipation>
  <SocialSecurityNumber>{0,1}</SocialSecurityNumber>
</Person>
Source
<xsd:element name="Person" type="hmis:person" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.3.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element person / PersonID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.14

"Every client receiving services from a contributory CoC program within a CoC is assigned a Personal Identification Number (PIN), which is a permanent and unique number generated by the HMIS application.  The PIN is used to obtain an unduplicated count of persons served within a CoC."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6
Type iDIndex
Properties
content: complex
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<PersonID delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</PersonID>
Attributes
QName Type Fixed Default Use Annotation
delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="PersonID" type="hmis:iDIndex">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.14" xml:lang="en">"Every client receiving services from a contributory CoC program within a CoC is assigned a Personal Identification Number (PIN), which is a permanent and unique number generated by the HMIS application.  The PIN is used to obtain an unduplicated count of persons served within a CoC."</xsd:documentation>
  </xsd:annotation>
</xsd:element>

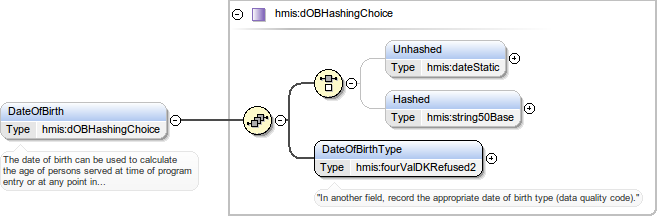

Element person / DateOfBirth
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.3

The date of birth can be used to calculate the age of persons served at time of program entry or at any point in receiving services.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id61 HUD_HMIS.xsd0.tmp#id66 HUD_HMIS.xsd0.tmp#id67 HUD_HMIS.xsd0.tmp#id60
Type dOBHashingChoice
Properties
content: complex
minOccurs: 0
Model (Unhashed{0,1} | Hashed{0,1}) , DateOfBirthType
Children DateOfBirthType, Hashed, Unhashed
Instance
<DateOfBirth>
  <Unhashed dataCollectionStage="" dateCollected="">{0,1}</Unhashed>
  <Hashed>{0,1}</Hashed>
  <DateOfBirthType dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</DateOfBirthType>
</DateOfBirth>
Source
<xsd:element name="DateOfBirth" type="hmis:dOBHashingChoice" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.3" xml:lang="en">The date of birth can be used to calculate the age of persons served at time of program entry or at any point in receiving services.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element dOBHashingChoice / Unhashed
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id63 HUD_HMIS.xsd0.tmp#id62
Type dateStatic
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="Unhashed" type="hmis:dateStatic" minOccurs="0"/>
Element dOBHashingChoice / Hashed
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id16
Type string50Base
Properties
content: simple
minOccurs: 0
Facets
maxLength 50
Source
<xsd:element name="Hashed" type="hmis:string50Base" minOccurs="0"/>
Element dOBHashingChoice / DateOfBirthType
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.3

"In another field, record the appropriate date of birth type (data quality code)."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id69 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id68
Type fourValDKRefused2
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="DateOfBirthType" type="hmis:fourValDKRefused2">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.3" xml:lang="en">"In another field, record the appropriate date of birth type (data quality code)."</xsd:documentation>
  </xsd:annotation>
</xsd:element>

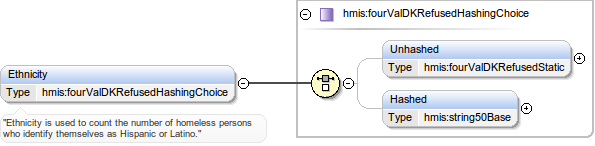

Element person / Ethnicity
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.5

"Ethnicity is used to count the number of homeless persons who identify themselves as Hispanic or Latino."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id72 HUD_HMIS.xsd0.tmp#id75 HUD_HMIS.xsd0.tmp#id71
Type fourValDKRefusedHashingChoice
Properties
content: complex
minOccurs: 0
Model Unhashed{0,1} | Hashed{0,1}
Children Hashed, Unhashed
Instance
<Ethnicity>
  <Unhashed dataCollectionStage="" dateCollected="">{0,1}</Unhashed>
  <Hashed>{0,1}</Hashed>
</Ethnicity>
Source
<xsd:element name="Ethnicity" type="hmis:fourValDKRefusedHashingChoice" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.5" xml:lang="en">"Ethnicity is used to count the number of homeless persons who identify themselves as Hispanic or Latino."</xsd:documentation>
  </xsd:annotation>
</xsd:element>

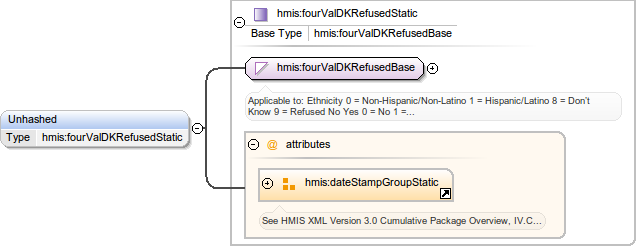

Element fourValDKRefusedHashingChoice / Unhashed
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id74 HUD_HMIS.xsd0.tmp#id63 HUD_HMIS.xsd0.tmp#id73
Type fourValDKRefusedStatic
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="Unhashed" type="hmis:fourValDKRefusedStatic" minOccurs="0"/>
Element fourValDKRefusedHashingChoice / Hashed
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id16
Type string50Base
Properties
content: simple
minOccurs: 0
Facets
maxLength 50
Source
<xsd:element name="Hashed" type="hmis:string50Base" minOccurs="0"/>

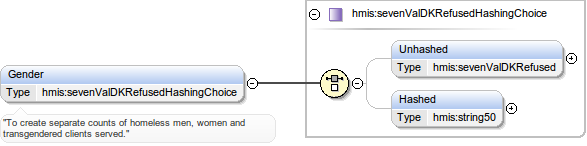

Element person / Gender
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.6

"To create separate counts of homeless men, women and transgendered clients served."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id78 HUD_HMIS.xsd0.tmp#id81 HUD_HMIS.xsd0.tmp#id77
Type sevenValDKRefusedHashingChoice
Properties
content: complex
minOccurs: 0
Model Unhashed{0,1} | Hashed{0,1}
Children Hashed, Unhashed
Instance
<Gender>
  <Unhashed dataCollectionStage="" dateCollected="" dateEffective="">{0,1}</Unhashed>
  <Hashed dataCollectionStage="" dateCollected="" dateEffective="">{0,1}</Hashed>
</Gender>
Source
<xsd:element name="Gender" type="hmis:sevenValDKRefusedHashingChoice" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.6" xml:lang="en">"To create separate counts of homeless men, women and transgendered clients served."</xsd:documentation>
  </xsd:annotation>
</xsd:element>

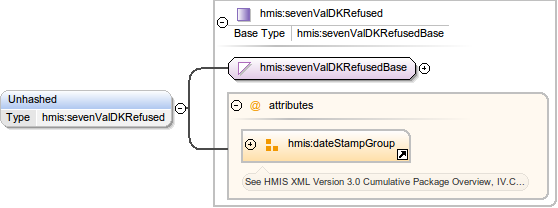

Element sevenValDKRefusedHashingChoice / Unhashed
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id80 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id79
Type sevenValDKRefused
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="Unhashed" type="hmis:sevenValDKRefused" minOccurs="0"/>
Element sevenValDKRefusedHashingChoice / Hashed
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id16 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id82
Type string50
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="Hashed" type="hmis:string50" minOccurs="0"/>
Element person / LegalFirstName
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.1

"The first, middle, last names, and suffix should be collected to support the unique identification of each person served."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id85 HUD_HMIS.xsd0.tmp#id86 HUD_HMIS.xsd0.tmp#id84
Type hashingChoiceStamped
Properties
content: complex
minOccurs: 0
Model Unhashed | Hashed
Children Hashed, Unhashed
Instance
<LegalFirstName>
  <Unhashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Unhashed>
  <Hashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Hashed>
</LegalFirstName>
Source
<xsd:element name="LegalFirstName" type="hmis:hashingChoiceStamped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.1" xml:lang="en">"The first, middle, last names, and suffix should be collected to support the unique identification of each person served."</xsd:documentation>
  </xsd:annotation>
</xsd:element>

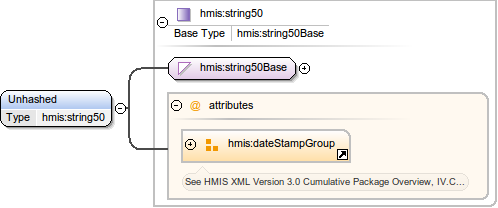

Element hashingChoiceStamped / Unhashed
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id16 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id82

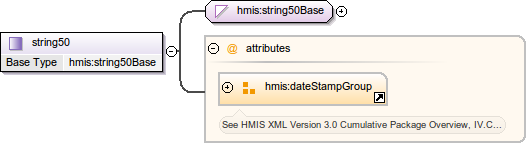

Type string50
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="Unhashed" type="hmis:string50"/>
Element hashingChoiceStamped / Hashed
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram HUD_HMIS.xsd0.tmp#id16 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id82
Type string50
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="Hashed" type="hmis:string50"/>

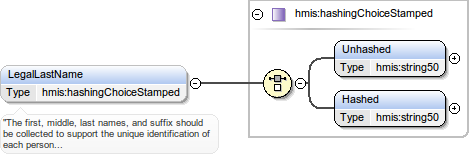

Element person / LegalLastName
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.1

"The first, middle, last names, and suffix should be collected to support the unique identification of each person served."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id85 HUD_HMIS.xsd0.tmp#id86 HUD_HMIS.xsd0.tmp#id84
Type hashingChoiceStamped
Properties
content: complex
minOccurs: 0
Model Unhashed | Hashed
Children Hashed, Unhashed
Instance
<LegalLastName>
  <Unhashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Unhashed>
  <Hashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Hashed>
</LegalLastName>
Source
<xsd:element name="LegalLastName" type="hmis:hashingChoiceStamped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.1" xml:lang="en">"The first, middle, last names, and suffix should be collected to support the unique identification of each person served."</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element person / LegalMiddleName
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.1

"The first, middle, last names, and suffix should be collected to support the unique identification of each person served."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id85 HUD_HMIS.xsd0.tmp#id86 HUD_HMIS.xsd0.tmp#id84
Type hashingChoiceStamped
Properties
content: complex
minOccurs: 0
Model Unhashed | Hashed
Children Hashed, Unhashed
Instance
<LegalMiddleName>
  <Unhashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Unhashed>
  <Hashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Hashed>
</LegalMiddleName>
Source
<xsd:element name="LegalMiddleName" type="hmis:hashingChoiceStamped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.1" xml:lang="en">"The first, middle, last names, and suffix should be collected to support the unique identification of each person served."</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element person / LegalSuffix
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 3.1

"The first, middle, last names, and suffix should be collected to support the unique identification of each person served."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id85 HUD_HMIS.xsd0.tmp#id86 HUD_HMIS.xsd0.tmp#id84
Type hashingChoiceStamped
Properties
content: complex
minOccurs: 0
Model Unhashed | Hashed
Children Hashed, Unhashed
Instance
<LegalSuffix>
  <Unhashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Unhashed>
  <Hashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Hashed>
</LegalSuffix>
Source
<xsd:element name="LegalSuffix" type="hmis:hashingChoiceStamped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 3.1" xml:lang="en">"The first, middle, last names, and suffix should be collected to support the unique identification of each person served."</xsd:documentation>
  </xsd:annotation>
</xsd:element>

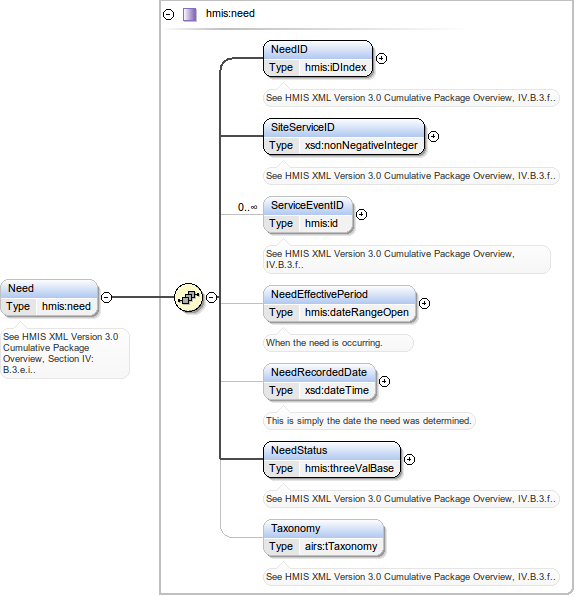

Element person / Need
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.3.e.i..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id92 HUD_HMIS.xsd0.tmp#id93 HUD_HMIS.xsd0.tmp#id94 HUD_HMIS.xsd0.tmp#id98 HUD_HMIS.xsd0.tmp#id102 HUD_HMIS.xsd0.tmp#id103 HUD_HMIS.xsd0.tmp#id105 HUD_HMIS.xsd0.tmp#id91
Type need
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model NeedID , SiteServiceID , ServiceEventID* , NeedEffectivePeriod{0,1} , NeedRecordedDate{0,1} , NeedStatus , Taxonomy{0,1}
Children NeedEffectivePeriod, NeedID, NeedRecordedDate, NeedStatus, ServiceEventID, SiteServiceID, Taxonomy
Instance
<Need>
  <NeedID delete="1" deleteEffective="" deleteOccurredDate="">{1,1}</NeedID>
  <SiteServiceID>{1,1}</SiteServiceID>
  <ServiceEventID>{0,unbounded}</ServiceEventID>
  <NeedEffectivePeriod>{0,1}</NeedEffectivePeriod>
  <NeedRecordedDate>{0,1}</NeedRecordedDate>
  <NeedStatus>{1,1}</NeedStatus>
  <Taxonomy>{0,1}</Taxonomy>
</Need>
Source
<xsd:element name="Need" type="hmis:need" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.3.e.i..</xsd:documentation>
  </xsd:annotation>
</xsd:element>

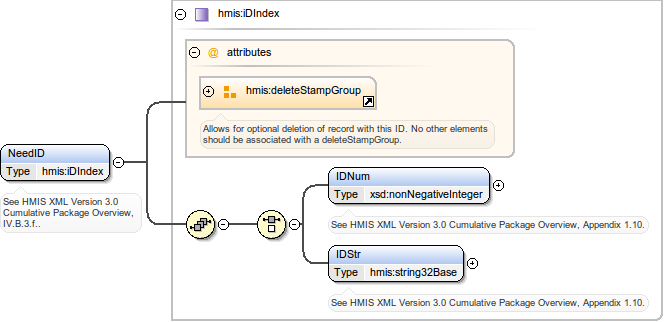

Element need / NeedID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6
Type iDIndex
Properties
content: complex
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<NeedID delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</NeedID>
Attributes
QName Type Fixed Default Use Annotation
delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="NeedID" type="hmis:iDIndex">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element need / SiteServiceID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..
Diagram
Diagram
Type xsd:nonNegativeInteger
Properties
content: simple
Source
<xsd:element name="SiteServiceID" type="xsd:nonNegativeInteger">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..</xsd:documentation>
  </xsd:annotation>
</xsd:element>

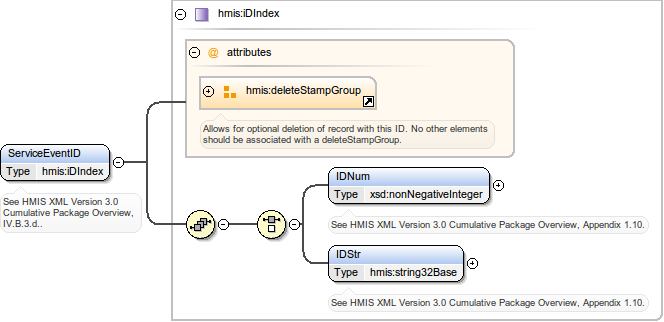

Element need / ServiceEventID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id96 HUD_HMIS.xsd0.tmp#id97 HUD_HMIS.xsd0.tmp#id95
Type id
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<ServiceEventID>
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</ServiceEventID>
Source
<xsd:element name="ServiceEventID" type="hmis:id" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element id / IDNum
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Appendix 1.10.
Diagram
Diagram
Type xsd:nonNegativeInteger
Properties
content: simple
Source
<xsd:element name="IDNum" type="xsd:nonNegativeInteger">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Appendix 1.10.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element id / IDStr
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Appendix 1.10.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id9
Type string32Base
Properties
content: simple
Facets
maxLength 32
Source
<xsd:element name="IDStr" type="hmis:string32Base">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Appendix 1.10.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

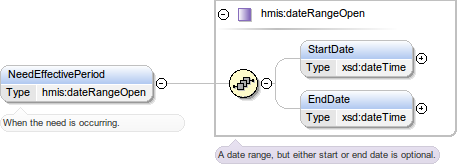

Element need / NeedEffectivePeriod
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
When the need is occurring.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id100 HUD_HMIS.xsd0.tmp#id101 HUD_HMIS.xsd0.tmp#id99
Type dateRangeOpen
Properties
content: complex
minOccurs: 0
Model StartDate{0,1} , EndDate{0,1}
Children EndDate, StartDate
Instance
<NeedEffectivePeriod>
  <StartDate>{0,1}</StartDate>
  <EndDate>{0,1}</EndDate>
</NeedEffectivePeriod>
Source
<xsd:element name="NeedEffectivePeriod" type="hmis:dateRangeOpen" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">When the need is occurring.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element dateRangeOpen / StartDate
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
minOccurs: 0
Source
<xsd:element name="StartDate" type="xsd:dateTime" minOccurs="0"/>
Element dateRangeOpen / EndDate
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
minOccurs: 0
Source
<xsd:element name="EndDate" type="xsd:dateTime" minOccurs="0"/>
Element need / NeedRecordedDate
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
This is simply the date the need was determined.
Diagram
Diagram
Type xsd:dateTime
Properties
content: simple
minOccurs: 0
Source
<xsd:element name="NeedRecordedDate" type="xsd:dateTime" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">This is simply the date the need was determined.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element need / NeedStatus
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id104
Type threeValBase
Properties
content: simple
Facets
maxInclusive 3
minInclusive 1
Source
<xsd:element name="NeedStatus" type="hmis:threeValBase">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element need / Taxonomy
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..
Diagram
Diagram
Type tTaxonomy
Properties
content: simple
minOccurs: 0
Source
<xsd:element name="Taxonomy" type="airs:tTaxonomy" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.f..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element person / OtherNames
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
Aliases, nicknames, non-legal names.  See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id108 HUD_HMIS.xsd0.tmp#id109 HUD_HMIS.xsd0.tmp#id110 HUD_HMIS.xsd0.tmp#id111 HUD_HMIS.xsd0.tmp#id107
Type otherNames
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model OtherFirstName{0,1} , OtherMiddleName{0,1} , OtherLastName{0,1} , OtherSuffix{0,1}
Children OtherFirstName, OtherLastName, OtherMiddleName, OtherSuffix
Instance
<OtherNames>
  <OtherFirstName>{0,1}</OtherFirstName>
  <OtherMiddleName>{0,1}</OtherMiddleName>
  <OtherLastName>{0,1}</OtherLastName>
  <OtherSuffix>{0,1}</OtherSuffix>
</OtherNames>
Source
<xsd:element name="OtherNames" type="hmis:otherNames" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Aliases, nicknames, non-legal names.  See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element otherNames / OtherFirstName
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id85 HUD_HMIS.xsd0.tmp#id86 HUD_HMIS.xsd0.tmp#id84
Type hashingChoiceStamped
Properties
content: complex
minOccurs: 0
Model Unhashed | Hashed
Children Hashed, Unhashed
Instance
<OtherFirstName>
  <Unhashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Unhashed>
  <Hashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Hashed>
</OtherFirstName>
Source
<xsd:element name="OtherFirstName" type="hmis:hashingChoiceStamped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..</xsd:documentation>
  </xsd:annotation>
</xsd:element>

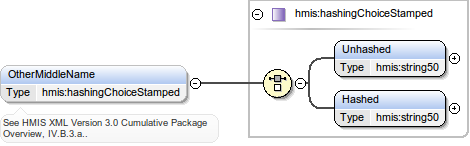

Element otherNames / OtherMiddleName
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id85 HUD_HMIS.xsd0.tmp#id86 HUD_HMIS.xsd0.tmp#id84
Type hashingChoiceStamped
Properties
content: complex
minOccurs: 0
Model Unhashed | Hashed
Children Hashed, Unhashed
Instance
<OtherMiddleName>
  <Unhashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Unhashed>
  <Hashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Hashed>
</OtherMiddleName>
Source
<xsd:element name="OtherMiddleName" type="hmis:hashingChoiceStamped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element otherNames / OtherLastName
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id85 HUD_HMIS.xsd0.tmp#id86 HUD_HMIS.xsd0.tmp#id84
Type hashingChoiceStamped
Properties
content: complex
minOccurs: 0
Model Unhashed | Hashed
Children Hashed, Unhashed
Instance
<OtherLastName>
  <Unhashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Unhashed>
  <Hashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Hashed>
</OtherLastName>
Source
<xsd:element name="OtherLastName" type="hmis:hashingChoiceStamped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..</xsd:documentation>
  </xsd:annotation>
</xsd:element>

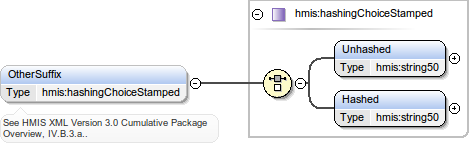

Element otherNames / OtherSuffix
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id85 HUD_HMIS.xsd0.tmp#id86 HUD_HMIS.xsd0.tmp#id84
Type hashingChoiceStamped
Properties
content: complex
minOccurs: 0
Model Unhashed | Hashed
Children Hashed, Unhashed
Instance
<OtherSuffix>
  <Unhashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Unhashed>
  <Hashed dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</Hashed>
</OtherSuffix>
Source
<xsd:element name="OtherSuffix" type="hmis:hashingChoiceStamped" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, IV.B.3.a..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element person / PersonHistorical
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.3.b..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id114 HUD_HMIS.xsd0.tmp#id115 HUD_HMIS.xsd0.tmp#id116 HUD_HMIS.xsd0.tmp#id135 HUD_HMIS.xsd0.tmp#id139 HUD_HMIS.xsd0.tmp#id140 HUD_HMIS.xsd0.tmp#id151 HUD_HMIS.xsd0.tmp#id158 HUD_HMIS.xsd0.tmp#id167 HUD_HMIS.xsd0.tmp#id168 HUD_HMIS.xsd0.tmp#id172 HUD_HMIS.xsd0.tmp#id178 HUD_HMIS.xsd0.tmp#id188 HUD_HMIS.xsd0.tmp#id189 HUD_HMIS.xsd0.tmp#id192 HUD_HMIS.xsd0.tmp#id195 HUD_HMIS.xsd0.tmp#id199 HUD_HMIS.xsd0.tmp#id200 HUD_HMIS.xsd0.tmp#id202 HUD_HMIS.xsd0.tmp#id203 HUD_HMIS.xsd0.tmp#id204 HUD_HMIS.xsd0.tmp#id215 HUD_HMIS.xsd0.tmp#id216 HUD_HMIS.xsd0.tmp#id219 HUD_HMIS.xsd0.tmp#id224 HUD_HMIS.xsd0.tmp#id225 HUD_HMIS.xsd0.tmp#id235 HUD_HMIS.xsd0.tmp#id258 HUD_HMIS.xsd0.tmp#id260 HUD_HMIS.xsd0.tmp#id262 HUD_HMIS.xsd0.tmp#id266 HUD_HMIS.xsd0.tmp#id271 HUD_HMIS.xsd0.tmp#id278 HUD_HMIS.xsd0.tmp#id285 HUD_HMIS.xsd0.tmp#id311 HUD_HMIS.xsd0.tmp#id113
Type personHistorical
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model PersonHistoricalID , SiteServiceID{0,1} , ChildEnrollmentStatus* , ChronicHealthCondition* , CurrentlyInSchool* , ContactsMade{0,1} , Degree* , Destinations{0,1} , DisablingCondition* , DevelopmentalDisability* , DomesticViolence* , Employment* , EngagedDate* , HealthStatus* , HighestSchoolLevel* , HIVAIDSStatus* , HousingStatus* , HUDChronicHomeless* , HUDHomelessEpisodes* , IncomeLast30Days* , IncomeAndSources{0,1} , IncomeTotalMonthly* , LengthOfStayAtPriorResidence* , MentalHealthProblem* , NonCashBenefitsLast30Days* , NonCashBenefits{0,1} , PersonAddress* , PersonEmail* , PersonPhoneNumber* , PhysicalDisability* , Pregnancy* , PriorResidence* , SubstanceAbuseProblem* , Veteran* , VocationalTraining*
Children ChildEnrollmentStatus, ChronicHealthCondition, ContactsMade, CurrentlyInSchool, Degree, Destinations, DevelopmentalDisability, DisablingCondition, DomesticViolence, Employment, EngagedDate, HIVAIDSStatus, HUDChronicHomeless, HUDHomelessEpisodes, HealthStatus, HighestSchoolLevel, HousingStatus, IncomeAndSources, IncomeLast30Days, IncomeTotalMonthly, LengthOfStayAtPriorResidence, MentalHealthProblem, NonCashBenefits, NonCashBenefitsLast30Days, PersonAddress, PersonEmail, PersonHistoricalID, PersonPhoneNumber, PhysicalDisability, Pregnancy, PriorResidence, SiteServiceID, SubstanceAbuseProblem, Veteran, VocationalTraining
Instance
<PersonHistorical>
  <PersonHistoricalID delete="1" deleteEffective="" deleteOccurredDate="">{1,1}</PersonHistoricalID>
  <SiteServiceID>{0,1}</SiteServiceID>
  <ChildEnrollmentStatus>{0,unbounded}</ChildEnrollmentStatus>
  <ChronicHealthCondition>{0,unbounded}</ChronicHealthCondition>
  <CurrentlyInSchool dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</CurrentlyInSchool>
  <ContactsMade>{0,1}</ContactsMade>
  <Degree>{0,unbounded}</Degree>
  <Destinations>{0,1}</Destinations>
  <DisablingCondition dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</DisablingCondition>
  <DevelopmentalDisability>{0,unbounded}</DevelopmentalDisability>
  <DomesticViolence>{0,unbounded}</DomesticViolence>
  <Employment>{0,unbounded}</Employment>
  <EngagedDate dataCollectionStage="" dateCollected="">{0,unbounded}</EngagedDate>
  <HealthStatus dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</HealthStatus>
  <HighestSchoolLevel dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</HighestSchoolLevel>
  <HIVAIDSStatus>{0,unbounded}</HIVAIDSStatus>
  <HousingStatus dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</HousingStatus>
  <HUDChronicHomeless dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</HUDChronicHomeless>
  <HUDHomelessEpisodes>{0,unbounded}</HUDHomelessEpisodes>
  <IncomeLast30Days dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</IncomeLast30Days>
  <IncomeAndSources>{0,1}</IncomeAndSources>
  <IncomeTotalMonthly dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</IncomeTotalMonthly>
  <LengthOfStayAtPriorResidence dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</LengthOfStayAtPriorResidence>
  <MentalHealthProblem>{0,unbounded}</MentalHealthProblem>
  <NonCashBenefitsLast30Days dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</NonCashBenefitsLast30Days>
  <NonCashBenefits>{0,1}</NonCashBenefits>
  <PersonAddress dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</PersonAddress>
  <PersonEmail dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</PersonEmail>
  <PersonPhoneNumber dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</PersonPhoneNumber>
  <PhysicalDisability>{0,unbounded}</PhysicalDisability>
  <Pregnancy>{0,unbounded}</Pregnancy>
  <PriorResidence>{0,unbounded}</PriorResidence>
  <SubstanceAbuseProblem>{0,unbounded}</SubstanceAbuseProblem>
  <Veteran>{0,unbounded}</Veteran>
  <VocationalTraining dataCollectionStage="" dateCollected="" dateEffective="">{0,unbounded}</VocationalTraining>
</PersonHistorical>
Source
<xsd:element name="PersonHistorical" type="hmis:personHistorical" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.3.b..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element personHistorical / PersonHistoricalID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.3.b..
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6
Type iDIndex
Properties
content: complex
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<PersonHistoricalID delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</PersonHistoricalID>
Attributes
QName Type Fixed Default Use Annotation
delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="PersonHistoricalID" type="hmis:iDIndex">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">See HMIS XML Version 3.0 Cumulative Package Overview, Section IV: B.3.b..</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element personHistorical / SiteServiceID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
Attributes these records to a collecting SiteService.  Links to airs:tSiteService.Key
Diagram
Diagram
Type xsd:nonNegativeInteger
Properties
content: simple
minOccurs: 0
Source
<xsd:element name="SiteServiceID" type="xsd:nonNegativeInteger" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Attributes these records to a collecting SiteService.  Links to airs:tSiteService.Key</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element personHistorical / ChildEnrollmentStatus
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
establishes a sequence for child school enrollment
Diagram
Diagram HUD_HMIS.xsd0.tmp#id118 HUD_HMIS.xsd0.tmp#id119 HUD_HMIS.xsd0.tmp#id122 HUD_HMIS.xsd0.tmp#id123 HUD_HMIS.xsd0.tmp#id124 HUD_HMIS.xsd0.tmp#id121 HUD_HMIS.xsd0.tmp#id126 HUD_HMIS.xsd0.tmp#id133 HUD_HMIS.xsd0.tmp#id125 HUD_HMIS.xsd0.tmp#id117
Type childEnrollmentStatus
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model ChildEnrollmentStatusID , ChildCurrentlyEnrolledInSchool{0,1} , ((ChildSchoolName{0,1} , ChildMcKinneyVentoLiaison{0,1} , ChildSchoolType{0,1}) | (ChildEnrollmentBarrier* , ChildSchoolLastEnrolledDate{0,1}))
Children ChildCurrentlyEnrolledInSchool, ChildEnrollmentBarrier, ChildEnrollmentStatusID, ChildMcKinneyVentoLiaison, ChildSchoolLastEnrolledDate, ChildSchoolName, ChildSchoolType
Instance
<ChildEnrollmentStatus>
  <ChildEnrollmentStatusID delete="1" deleteEffective="" deleteOccurredDate="">{1,1}</ChildEnrollmentStatusID>
  <ChildCurrentlyEnrolledInSchool dataCollectionStage="" dateCollected="" dateEffective="">{0,1}</ChildCurrentlyEnrolledInSchool>
</ChildEnrollmentStatus>
Source
<xsd:element name="ChildEnrollmentStatus" type="hmis:childEnrollmentStatus" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">establishes a sequence for child school enrollment</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element childEnrollmentStatus / ChildEnrollmentStatusID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
Establishes a unique ID for the School Enrollment Status sequence.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6
Type iDIndex
Properties
content: complex
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<ChildEnrollmentStatusID delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</ChildEnrollmentStatusID>
Attributes
QName Type Fixed Default Use Annotation
delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="ChildEnrollmentStatusID" type="hmis:iDIndex">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Establishes a unique ID for the School Enrollment Status sequence.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element childEnrollmentStatus / ChildCurrentlyEnrolledInSchool
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
Diagram
Diagram HUD_HMIS.xsd0.tmp#id74 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id120
Type fourValDKRefused
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="ChildCurrentlyEnrolledInSchool" type="hmis:fourValDKRefused" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.15F" xml:lang="en">"Current enrollment status"</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element childEnrolledYes / ChildSchoolName
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.15F

If yes [to ChildCurrentlyEnrolledInSchool], name of child’s school.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id16 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id82
Type string50
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="ChildSchoolName" type="hmis:string50" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.15F" xml:lang="en">If yes [to ChildCurrentlyEnrolledInSchool], name of child’s school.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element childEnrolledYes / ChildMcKinneyVentoLiaison
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.15F

"If yes [to ChildCurrentlyEnrolledInSchool], was/is the child connected to the McKinney-Vento Homeless Assistance Act school liaison?"
Diagram
Diagram HUD_HMIS.xsd0.tmp#id74 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id120
Type fourValDKRefused
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="ChildMcKinneyVentoLiaison" type="hmis:fourValDKRefused" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.15F" xml:lang="en">"If yes [to ChildCurrentlyEnrolledInSchool], was/is the child connected to the McKinney-Vento Homeless Assistance Act school liaison?"</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element childEnrolledYes / ChildSchoolType
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.15F

"If yes [to ChildCurrentlyEnrolledInSchool], type of school."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id69 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id68
Type fourValDKRefused2
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="ChildSchoolType" type="hmis:fourValDKRefused2" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.15F" xml:lang="en">"If yes [to ChildCurrentlyEnrolledInSchool], type of school."</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element childEnrolledNo / ChildEnrollmentBarrier
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.15F

"If not enrolled, identify problems in enrolling child"
Diagram
Diagram HUD_HMIS.xsd0.tmp#id128 HUD_HMIS.xsd0.tmp#id129 HUD_HMIS.xsd0.tmp#id132 HUD_HMIS.xsd0.tmp#id127
Type barrier
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model BarrierID , BarrierCode{0,1} , BarrierOther{0,1}
Children BarrierCode, BarrierID, BarrierOther
Instance
<ChildEnrollmentBarrier>
  <BarrierID delete="1" deleteEffective="" deleteOccurredDate="">{1,1}</BarrierID>
  <BarrierCode dataCollectionStage="" dateCollected="" dateEffective="">{0,1}</BarrierCode>
  <BarrierOther dataCollectionStage="" dateCollected="" dateEffective="">{0,1}</BarrierOther>
</ChildEnrollmentBarrier>
Source
<xsd:element name="ChildEnrollmentBarrier" type="hmis:barrier" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.15F" xml:lang="en">"If not enrolled, identify problems in enrolling child"</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element barrier / BarrierID
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
Establishes a unique id for the grouping of Barrier Code and BarrierOther.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id10 HUD_HMIS.xsd0.tmp#id7 HUD_HMIS.xsd0.tmp#id8 HUD_HMIS.xsd0.tmp#id6
Type iDIndex
Properties
content: complex
Model (IDNum | IDStr)
Children IDNum, IDStr
Instance
<BarrierID delete="1" deleteEffective="" deleteOccurredDate="">
  <IDNum>{1,1}</IDNum>
  <IDStr>{1,1}</IDStr>
</BarrierID>
Attributes
QName Type Fixed Default Use Annotation
delete twoValBase 1 optional
Optionally allows specification of a deleted record.  If record is to be added, do not append this attribute, since "add" is the default, understood behavior.
deleteEffective xsd:dateTime optional
Date deletion effective.
deleteOccurredDate xsd:dateTime optional
Date deletion occured.
Source
<xsd:element name="BarrierID" type="hmis:iDIndex">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Establishes a unique id for the grouping of Barrier Code and BarrierOther.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element barrier / BarrierCode
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.15F

"If not enrolled, identify problems in enrolling child"
Diagram
Diagram HUD_HMIS.xsd0.tmp#id131 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id130
Type barrierCode
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="BarrierCode" type="hmis:barrierCode" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.15F" xml:lang="en">"If not enrolled, identify problems in enrolling child"</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element barrier / BarrierOther
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations
Diagram
Diagram HUD_HMIS.xsd0.tmp#id16 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id82
Type string50
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="BarrierOther" type="hmis:string50" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 2.15F" xml:lang="en"/>
  </xsd:annotation>
</xsd:element>
Element childEnrolledNo / ChildSchoolLastEnrolledDate
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.15F

"If not enrolled, last date of enrollment"
If day not known, use "01" for day.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id63 HUD_HMIS.xsd0.tmp#id134
Type date
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="ChildSchoolLastEnrolledDate" type="hmis:date" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.15F" xml:lang="en">"If not enrolled, last date of enrollment"</xsd:documentation>
    <xsd:documentation xml:lang="en">If day not known, use "01" for day.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element personHistorical / ChronicHealthCondition
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.5

To count the number of persons served with severe health conditions and assess their need for healthcare and other medical services.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id137 HUD_HMIS.xsd0.tmp#id138 HUD_HMIS.xsd0.tmp#id136
Type chronicHealthCondition
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model HasChronicHealthCondition , ReceiveChronicHealthServices{0,1}
Children HasChronicHealthCondition, ReceiveChronicHealthServices
Instance
<ChronicHealthCondition>
  <HasChronicHealthCondition dataCollectionStage="" dateCollected="" dateEffective="">{1,1}</HasChronicHealthCondition>
  <ReceiveChronicHealthServices dataCollectionStage="" dateCollected="" dateEffective="">{0,1}</ReceiveChronicHealthServices>
</ChronicHealthCondition>
Source
<xsd:element name="ChronicHealthCondition" type="hmis:chronicHealthCondition" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.5" xml:lang="en">To count the number of persons served with severe health conditions and assess their need for healthcare and other medical services.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element chronicHealthCondition / HasChronicHealthCondition
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.5

"For the purposes of this Notice, a chronic health condition means a diagnosed condition that is more than three months in duration and is either not curable or has residual effects that limit daily living and require adaptation in function or special assistance."
Diagram
Diagram HUD_HMIS.xsd0.tmp#id74 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id120
Type fourValDKRefused
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="HasChronicHealthCondition" type="hmis:fourValDKRefused">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.5" xml:lang="en">"For the purposes of this Notice, a chronic health condition means a diagnosed condition that is more than three months in duration and is either not curable or has residual effects that limit daily living and require adaptation in function or special assistance."</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element chronicHealthCondition / ReceiveChronicHealthServices
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.5

"(If yes[to HasChronicHealthCondition]) Currently receiving services or treatment for this condition or received services/treatment prior to exiting the program?
Diagram
Diagram HUD_HMIS.xsd0.tmp#id74 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id120
Type fourValDKRefused
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="ReceiveChronicHealthServices" type="hmis:fourValDKRefused" minOccurs="0">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.5" xml:lang="en">"(If yes[to HasChronicHealthCondition]) Currently receiving services or treatment for this condition or received services/treatment prior to exiting the program?</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element personHistorical / CurrentlyInSchool
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.15B

"Currently in school or working on any degree or certificate"
Diagram
Diagram HUD_HMIS.xsd0.tmp#id74 HUD_HMIS.xsd0.tmp#id44 HUD_HMIS.xsd0.tmp#id120
Type fourValDKRefused
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
dataCollectionStage fourValBase optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateCollected xsd:dateTime required
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
dateEffective xsd:dateTime optional
See HMIS XML Version 3.0 Cumulative Package Overview, IV.C..
Source
<xsd:element name="CurrentlyInSchool" type="hmis:fourValDKRefused" minOccurs="0" maxOccurs="unbounded">
  <xsd:annotation>
    <xsd:documentation source="2010 HUD HMIS Data and Technical Standards, Section 4.15B" xml:lang="en">"Currently in school or working on any degree or certificate"</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element personHistorical / ContactsMade
Namespace http://www.hudhdx.info/Resources/Vendors/3_0/HUD_HMIS.xsd
Annotations

2010 HUD HMIS Data and Technical Standards, Section 4.11

To record and count the number of contacts with homeless persons by street outreach programs.
Diagram
Diagram HUD_HMIS.xsd0.tmp#id142 HUD_HMIS.xsd0.tmp#id141
Type contactsMade
Properties
content: complex
minOccurs: 0
Model
